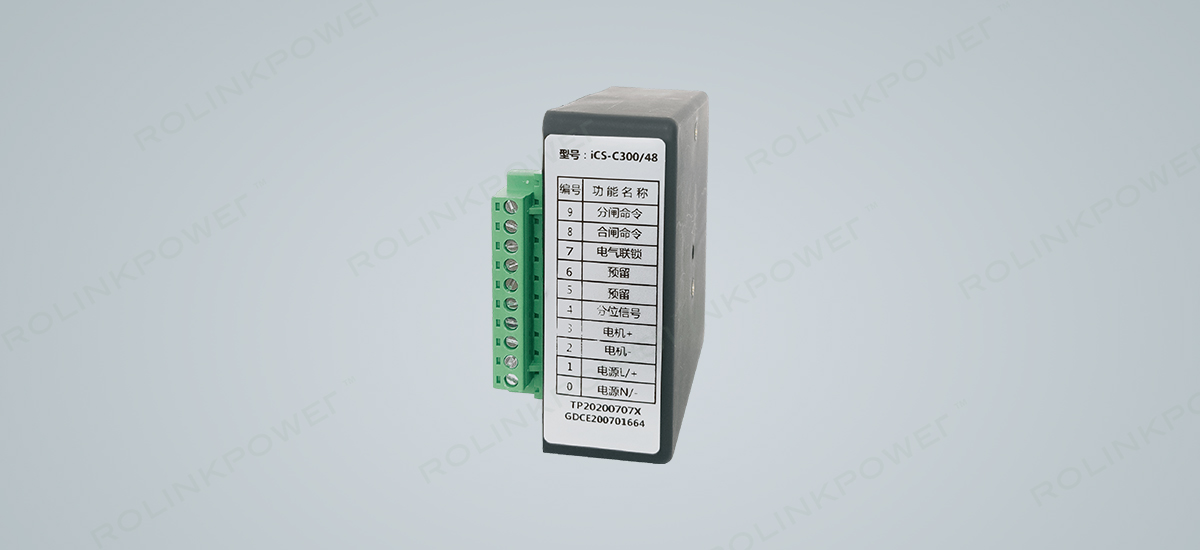

The iCS-X300 series electric operation controller is a new product specially tailored for the closing and opening control of the electric mechanism of the ring network cabinet. Through the optimized control program, the intelligent control of the operating mechanism of the ring network cabinet is realized. Compared with the traditional relay and contactor control circuits, it has significant advantages.
Characteristic:
◇ Small size, convenient installation, can be installed in the operating mechanism room of the ring network unit.
◇ The controller is highly integrated, intelligently controlled through the program, and the external wiring is simple and convenient.
◇ Fully sealed, maintenance free design, applicable to the harsh environment of moisture, condensation and pollution.
◇ Imported high-precision integrated components are used, which has high reliability and long service life.

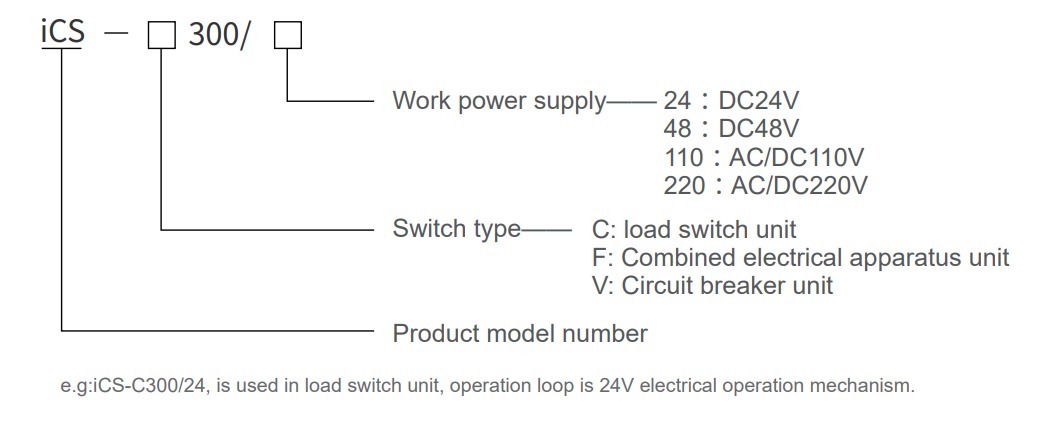

Product model and description:
The iCS-X300 series electric operation controller has the function of signal position detection and relay control. It can access the passive contact signal of the auxiliary opening or limit switch of the mechanism to conduct the electric closing and opening operation of the mechanism. The controller also has the protection function of the motor and coil and the anti tripping function of the circuit breaker.
Work power supply | DC24V,DC48V,AC/DC110V,AC/DC220V (description when ordering) | |
Environmental parameter | Environmental temperature | -20℃ ~ +60℃ |
Altitude | ≤2500m | |
Insulation performance | Power frequency withstand voltage | AC 2kV/1min |
